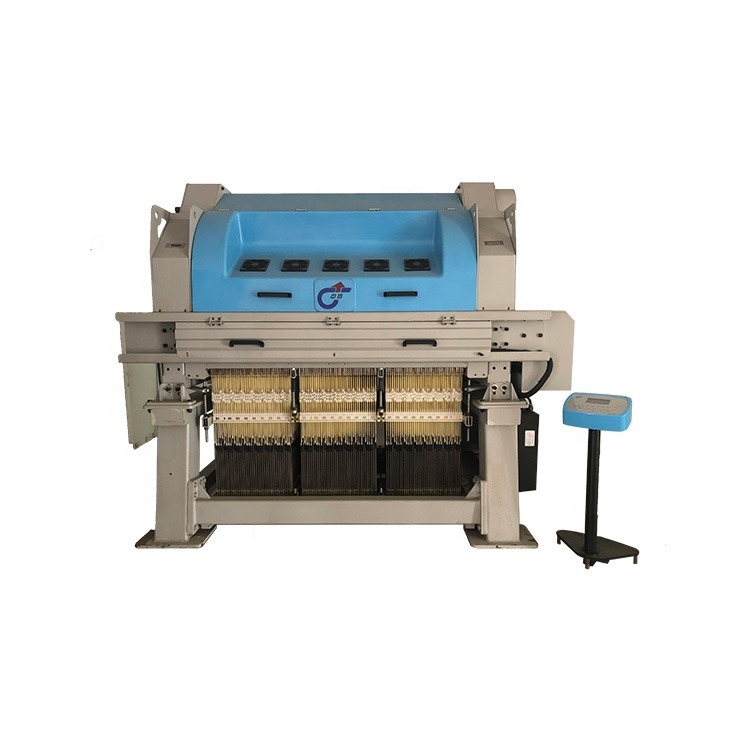

GE/GES Electronic Bonas Jacquard with 24line 6400 hooks weaving loom high speed

1.0 Sets
MOQ
GE/GES Electronic Bonas Jacquard with 24line 6400 hooks weaving loom high speed
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: textile
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: Bearing, Gearbox, Motor, Gear
Machine Type: JACQUARD LOOM
Product: FABRIC
Material Capabilities: Yarn
Condition: New
Warranty: 1 Year
Application: textile
Product name: Jacquard loom
Raw material: Steel
Voltage: 220V/380V
Speed: High Speed
Name: Jacquard loom
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea
Certificazione: ce
After-sales Service Provided: Free spare parts, Video technical support, Online support
Informazioni di base
Certificazione: ce
Termini di pagamento e spedizione
Supply Ability: 50 Set/Sets per Year
Descrizione di prodotto
Products Description
Usage:Staubli Shedding Motion
Quality:High-quality
Name:M5 Module
Usage:Picanol Loom
Usage:Vamatex Rapier Loom
Usage:Somet Rapier Loom
Usage:shuttle
Application:Weaving Machinery
Application:Textile Loom
Material:High-quality Alloy Steel
·Features of mechanical parts -Driven by extremely solid bilateral eccentric cam -Min maintenance -With integrated frame design bearing advantages of high precision, high intensity and light weight. -Equipped with the balance-arm lifting mechanism which eliminates unbalanced load and can work without vibration. -Adopting the simple knife height-adjustment method and the fast opening dimension-adjustment system which bring extreme flexibility to the machine -Equipped with the solid lifting mechanism, supporting structure and the needle-selecting system which can work normally in high speed. ·Controller Profile -Windows system -Big memory with double core& improving running speed -Diagnosis function with fast speed & accurate fixing -Optical transmission -Touch screen -Work for EP and JC design -High stability ·Field of application All kind of Rapier loom, Water jet loom, Air jest loom and also shuttle loom ·Fabric suitability All flat fabrics and terry cloth including home textile, garment fabric, towel, tie, label and so on. ·Drive system and shedding Double lift, full shedding, easy accurate shed opening adjustment ·Max speed 650RPM ·Shedding Size 50mm-120mm ·Type of reversing Spring
Product Display
Company Profile
Shanghai Leader industry Co.,Ltd and Shanghai Zhongjian Textile Machinery Co.,Ltd are Brother Company, which located in Shanghai Lantian economic zone. Cover an area of 45020 square meters including green area of 6000 square meters, building area of 26000 square meters. We have been regarding ” Sincere dedication, Collaborative endeavor, be pratical, innovation” as the spirit of entreprises spirit all the time. Taking our quality management concept with strategy of “high starting point, high quality, high level” as our standard into every link. All of our company person always can stick together to get best quality from our first-class equipments, first-class technology & first-class management. We are professional to produce electronic Jacquard start 448 hooks to MAX 20240 hooks suitable for different kind of rapier loom, water jet loom, air jet loom, shuttle looms which can produce label, towel, tie, belt, home textile, garment fabric and saree fabric. Also we are producing different kind of tuck in device suitable for Somet, Vamatex, Panter, Smit, Toyota, Chinese loom which can produce towel, home textile, garment fabrics and so on and also selvedge Jacquard with 72+72 & 72+144+72 suitable for different kind of rapier loom, water jet loom, air jet loom, shuttle looms. All of above product spreads not only in China 24 provinces and also more than 40 countries and also get good feedback, fame from user. We attach great importance to the marketing network and after-sales service establishment and improvement, already established 7 sales office & service team in China and 18 sales office & service team in abroad. Our sales and service person will follow the principle of “faithful service, keep faith, customer first”, try their best and ensuring there is minim production loss of customer due to technical snag. With the development of society, all the staff of our company will try their best to update their ideas and stick to the spirit of innovation so as to meet the new challenges and further development.
